Chapter: 10 network analysis

#install.packages("data.table")
#install.packages("igraph")

# ライブラリコマンドでの読み込みは毎回必要
library(tidyverse)
library(data.table)
library(igraph)
library(tidygraph)
library(ggraph)

#getwd() # 現在の作業ディレクトリを確認
#setwd("D:/Offline_folder/Tokai/Tokai_DataAnalysis/dataanalysis") # 作業ディレクトリの変更

10.1 ネットワーク分析

人間関係、企業間の関係など、様々な分野で活用される、グラフ理論をベースとした分析手法。

#ウイスキーデータの取得
whiskies<-data.table::fread("http://outreach.mathstat.strath.ac.uk/outreach/nessie/datasets/whiskies.txt",header=TRUE)

#各蒸留所間の相関係数を算出
cor.mat<-whiskies %>%
  select(Body,Sweetness,Smoky,Medicinal,Tobacco,Honey,
         Spicy,Winey,Nutty,Malty,Fruity,Floral) %>%
  t() %>%
  cor()

#行名・列名を追加
colnames(cor.mat)<-whiskies$Distillery
rownames(cor.mat)<-whiskies$Distillery

cor.mat[upper.tri(cor.mat,diag=TRUE)]<-NA

#Long formatに変換して相関係数0.8以上に絞り込み
d<-cor.mat %>%
  as.data.frame() %>%
  mutate(distillerry1 = whiskies$Distillery) %>%
  gather(key="distillerry2", value="cor",-distillerry1) %>%
  select(distillerry1,distillerry2,cor) %>%
  filter(!is.na(cor) & cor >=0.80)

g<-tidygraph::as_tbl_graph(d,directed = FALSE)

g

## # A tbl_graph: 67 nodes and 135 edges
## #
## # An undirected simple graph with 1 component
## #
## # A tibble: 67 × 1
##   name
##   <chr>
## 1 Auchroisk
## 2 Benrinnes
## 3 Benromach
## 4 BlairAthol
## 5 RoyalLochnagar
## 6 Speyside
## # ℹ 61 more rows
## #
## # A tibble: 135 × 3
##    from    to   cor
##   <int> <int> <dbl>
## 1     1    54 0.824
## 2     2    54 0.842
## 3     3    54 0.855
## # ℹ 132 more rows

#密度
g %>% igraph::graph.density()

## [1] 0.061

#推移性
g %>% igraph::transitivity()

## [1] 0.28

#相互性（無向グラフは1）
g %>% igraph::reciprocity()

## [1] 1

#媒介中心性の追加
g1<- g %>%
  mutate(centrality=centrality_betweenness())

g1

## # A tbl_graph: 67 nodes and 135 edges
## #
## # An undirected simple graph with 1 component
## #
## # A tibble: 67 × 2
##   name           centrality
##   <chr>               <dbl>
## 1 Auchroisk            174.
## 2 Benrinnes            122.
## 3 Benromach            411.
## 4 BlairAthol             0
## 5 RoyalLochnagar       234.
## 6 Speyside             121.
## # ℹ 61 more rows
## #
## # A tibble: 135 × 3
##    from    to   cor
##   <int> <int> <dbl>
## 1     1    54 0.824
## 2     2    54 0.842
## 3     3    54 0.855
## # ℹ 132 more rows

#辺媒介中心性の追加
g2<-g %>% activate(edges) %>%
  mutate(importance = centrality_edge_betweenness())

g2

## # A tbl_graph: 67 nodes and 135 edges
## #
## # An undirected simple graph with 1 component
## #
## # A tibble: 135 × 4
##    from    to   cor importance
##   <int> <int> <dbl>      <dbl>
## 1     1    54 0.824       79.3
## 2     2    54 0.842       42.9
## 3     3    54 0.855       54.2
## 4     4    54 0.855       15.5
## 5     5    54 0.802       63.9
## 6     6    54 0.827       82.7
## # ℹ 129 more rows
## #
## # A tibble: 67 × 1
##   name
##   <chr>
## 1 Auchroisk
## 2 Benrinnes
## 3 Benromach
## # ℹ 64 more rows

#コミュニティ検出
g3<-g %>%
  mutate(community=as.factor(group_fast_greedy(weights=cor)))

g3

## # A tbl_graph: 67 nodes and 135 edges
## #
## # An undirected simple graph with 1 component
## #
## # A tibble: 67 × 2
##   name           community
##   <chr>          <fct>
## 1 Auchroisk      2
## 2 Benrinnes      3
## 3 Benromach      2
## 4 BlairAthol     2
## 5 RoyalLochnagar 2
## 6 Speyside       3
## # ℹ 61 more rows
## #
## # A tibble: 135 × 3
##    from    to   cor
##   <int> <int> <dbl>
## 1     1    54 0.824
## 2     2    54 0.842
## 3     3    54 0.855
## # ℹ 132 more rows

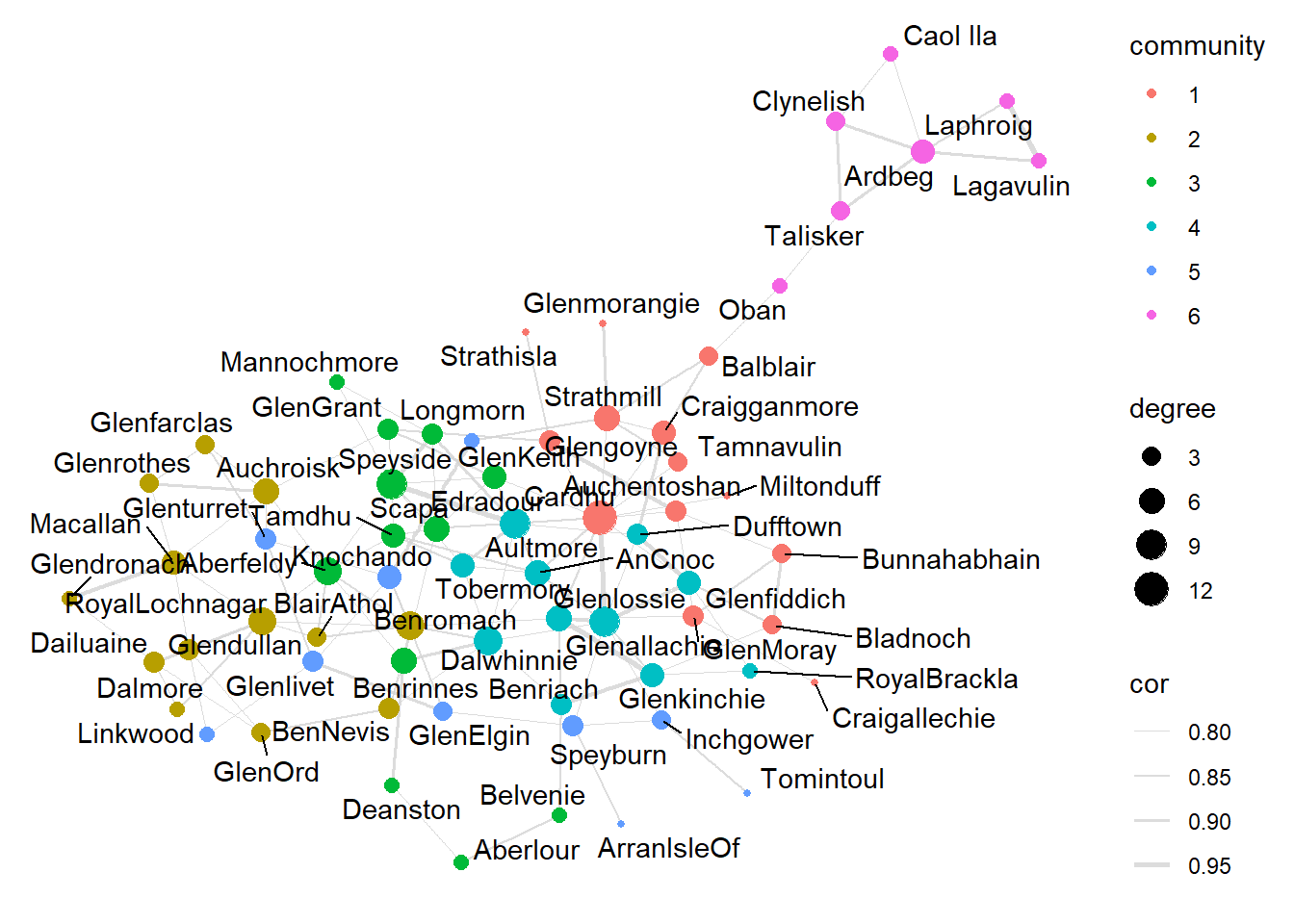

g3 %>%
  mutate(degree=degree(g3)) %>%
  ggraph(layout="kk")+
  geom_edge_link(aes(width = cor),
                 alpha=0.8,
                 colour="lightgray")+　#エッジの追加
  scale_edge_width(range=c(0.1,1))+ #太さの調節
  geom_node_point(aes(colour=community,size=degree))+ #ノードの追加
  geom_node_text(aes(label=name),repel=TRUE)

## Warning: Using the `size` aesthetic in this geom was deprecated in ggplot2 3.4.0.
## ℹ Please use `linewidth` in the `default_aes` field and elsewhere instead.
## This warning is displayed once every 8 hours.
## Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
## generated.

##参考

下記の資料を参考にこの項目を作成しました。
-https://www.slideshare.net/MitsunoriSato/tokyor32-network-analysis-24442516
-https://www.slideshare.net/kashitan/tidygraphggraph-ver-152368322
-https://www.slideshare.net/kashitan/ss-238547900
-https://qiita.com/saltcooky/items/4e55d97c5e86dfb208cd
